Precision Airfield Marking Solutions
At Oriental Airport Systems (OAS), we provide high-precision runway paint marking machines designed to deliver clear, durable, and ICAO-compliant airfield markings.
Our solutions are sourced from globally recognized manufacturers like Altekma Group, offering advanced airless technology for accurate line marking on runways, taxiways, aprons, and airfields.
These machines ensure sharp visibility, long-lasting performance, and efficient application, even in demanding airport environments.

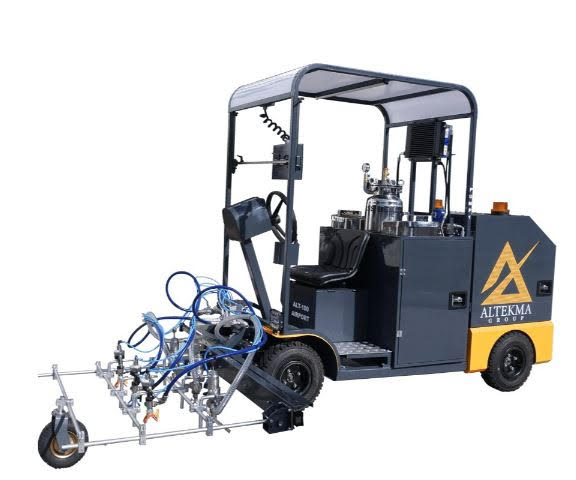

ALT-105

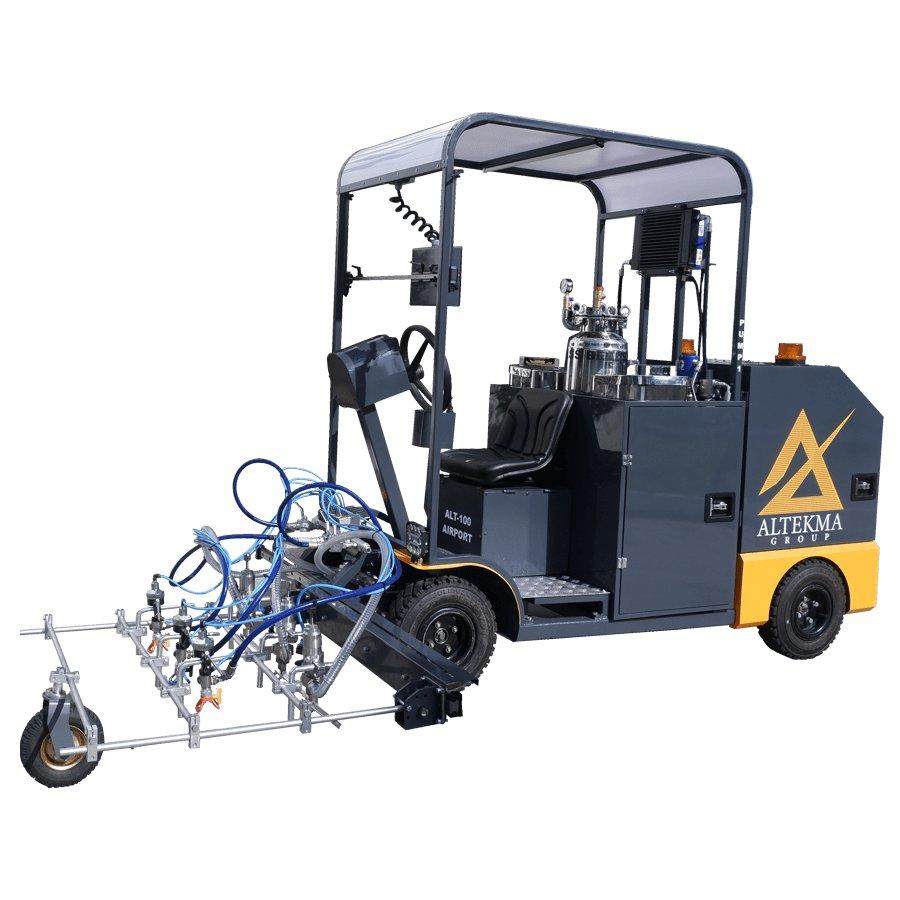

ALT-305
ALT-1405
We offer a range of high-performance runway marking machines:
- ALT 105 Airport – Compact and highly maneuverable marking solution
- ALT 305 Airport – Medium-capacity self-propelled machine for regular operations
- ALT 1405 Airport – Large-scale, high-capacity system for major airports
These machines are specifically engineered for runway, taxiway, and apron marking applications, ensuring high productivity and consistent results.
Technical Specifications
Below is a specification of TSA Series Range:
| Specification | ALT 105 | ALT 305 | ALT 1405 |
|---|---|---|---|
| Application | Runway / Taxiway | Runway / Apron / Taxiway | Large-scale runway marking |
| Machine Type | Self-propelled | Self-propelled | Heavy-duty self-propelled |
| Max Speed | Up to 20 km/h | Up to 20 km/h | Up to 20 km/h |
| Engine Power | ~20 HP | ~59 HP | ~84 HP |
| Paint Tank Capacity | 100 L | 300 L | 1400 L |
| Glass Bead Tank | 30 L | 100 L | 300 L |
| Paint Pumps | 2 (8.1 L/min) | 2 (19.5 L/min) | 2 (19 L/min) |
| Max Pressure | High-pressure airless | 230 bar | 230 bar |
| Paint Guns | 3 + 1 manual | 3 + optional manual | 4 + 1 manual |
| Glass Bead Guns | 3 | 3 | 5 |
| Control System | Touchscreen | PLC Touchscreen + GPS | Advanced touchscreen control |
| Special Features | Compact & maneuverable | Sliding system + GPS | Multi-line wide marking capability |
Key Features & Capabilities
1. High-Precision Line Marking
- Airless spray system ensures sharp, uniform, and highly visible markings
- Suitable for runway centerlines, taxiway markings, and apron layouts
- Enables multi-line applications in a single pass
2. Dual Paint System Capability
- Supports both water-based and solvent-based paints
- Twin pump systems allow simultaneous dual-color applications
3. Integrated Glass Bead System
- Ensures retro-reflectivity for night operations
- Uniform bead distribution improves marking visibility
4. Smart Control & Automation
- Touchscreen control panels for precise operation
- GPS-enabled systems for accurate line tracking (selected models)
- Memory-based line templates for consistent marking
5. High Productivity for Airports
- Covers large runway areas quickly
- Ideal for both new marking and repainting operations
- Reduces downtime during maintenance cycles
6. Operator-Friendly Design
- Ergonomic controls and hydraulic systems
- Smooth maneuverability even in tight runway zones
- Optional laser guidance for enhanced accuracy
Applications
- Runway centerline and edge marking
- Taxiway guidance markings
- Apron and parking bay markings
- Removal and repainting of existing markings
- ICAO-compliant airport marking operations
Machines Delivered
Why Choose OAS?
- Globally trusted airport ground support equipment
- High-speed, high-efficiency sweeping solutions
- Custom configurations based on airport requirements
- Complete support: supply, training, and after-sales service
Conclusion
Accurate runway markings are critical for safe aircraft navigation and airport operations. With OAS runway marking machines, airports can achieve precision, durability, and efficiency, ensuring compliance with global aviation standards.
