Advanced Jet Blast Protection Systems
At Oriental Airport Systems (OAS), we provide high-performance Jet Blast Deflectors (JBDs) designed to protect personnel, infrastructure, and equipment from the extreme force of aircraft engine exhaust.
Our solutions are sourced from globally trusted manufacturers like Blast Deflectors Inc. (BDI), delivering advanced, engineered systems for maximum safety, durability, and operational efficiency.
Jet blast deflectors are critical safety installations that redirect high-velocity exhaust gases, preventing damage and ensuring safe airport operations.
Jet Blast Deflecting Systems – Overview
Heavy-Duty Jet Blast Deflectors
Fiberglass Jet Blast Deflectors
Light-Duty Jet Blast Deflectors
About Jet Blast Deflectors

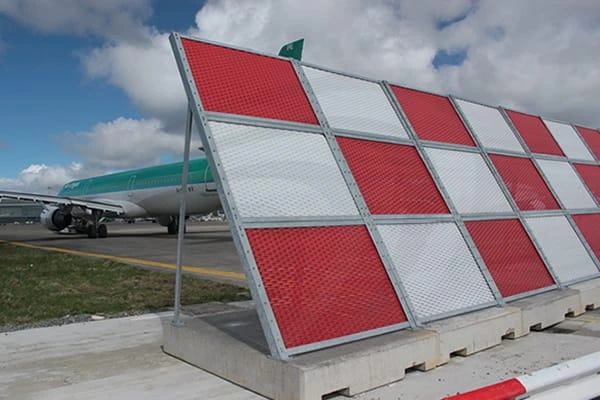

A Jet Blast Deflector (JBD) is a safety structure installed at airports to redirect and dissipate jet engine exhaust. Without proper protection, jet blast can cause severe damage to vehicles, buildings, equipment, and even pose risks to human life.
Modern deflectors are engineered to withstand extreme heat, high-speed airflow, and debris impact, ensuring long-term reliability in demanding aviation environments.performance.
We offer a complete range of jet blast protection systems:
1. Light-Duty Jet Blast Deflectors
- Designed for taxi operations and low-thrust aircraft exhaust
- Installed near roads, buildings, and parking areas
- Available in curved or vertical configurations
- Can include solid or mesh panels
2. Heavy-Duty Jet Blast Deflectors
- Engineered for full-power engine run-ups
- Ideal for runway ends and maintenance areas
- High-strength curved structures with solid panels
- Suitable for all aircraft types
3. Fiberglass Jet Blast Deflectors
- Designed for use near navigation systems (ILS, NAVAIDs)
- Non-metallic material prevents signal interference
- FAA-tested for compatibility with aviation systems
4. Portable & Temporary Deflectors
- Ideal for airside construction and temporary operations
- Modular and relocatable systems
- No permanent civil work required
- Flexible configurations for different project needs
Technical Specifications (Typical JBD Systems)
| Specification | Jet Blast Deflectors |
|---|---|
| Application | Runways, Taxiways, Engine Run-up Areas |
| Material | Hot-dip galvanized steel / Fiberglass |
| Design Types | Curved, Vertical, Angled |
| Height Range | ~2 m to 11 m (6 ft – 35 ft) |
| Configuration | Fixed / Portable / Modular |
| Panel Type | Solid panels / Expanded metal mesh |
| Standards Compliance | ICAO / FAA |
| Function | Redirect jet exhaust safely upward |
| Additional Options | Acoustic barriers, fencing, obstruction lights |
Project Delivered – Chhatrapati Shivaji Maharaj International Airport Mumbai
Key Features & Capabilities
1. Enhanced Safety Protection
- Protects personnel, vehicles, and infrastructure
- Prevents damage from high-speed jet exhaust
- Ensures safe airport operations in high-traffic zones
2. High Structural Strength
- Built using heavy-duty galvanized steel or composite materials
- Designed to withstand extreme temperatures and airflow forces
- Long service life with corrosion protection
3. Optimized Aerodynamic Design
- Curved and angled designs improve airflow redirection efficiency
- Minimizes turbulence and debris spread
- Ensures effective blast dissipation
4. Modular & Customizable Systems
- Modular construction allows easy relocation and expansion
- Custom-designed solutions based on aircraft type and site conditions
- Suitable for both permanent and temporary installations
5. Noise Reduction Integration
- Can be combined with acoustic barriers and run-up enclosures
- Reduces environmental noise impact
- Ideal for airports in urban areas
Applications
- Runway ends and taxiway protection
- Engine run-up and maintenance areas
- Airport perimeter safety zones
- Protection of nearby roads, buildings, and equipment
- Military airbases and aircraft testing facilities
Why Choose OAS for Jet Blast Deflectors?
- Partnerships with global leaders like BDI (Blast Deflectors Inc.)
- Proven solutions with 25 years of industry experience
- Custom-engineered systems for every airport requirement
- ICAO & FAA compliant designs
- Complete support: design consultation, supply, and installation
Conclusion
Jet blast poses a serious safety risk in airport operations. With OAS Jet Blast Deflectors, airports can ensure maximum protection, operational safety, and infrastructure longevity, while maintaining compliance with global aviation standards.
